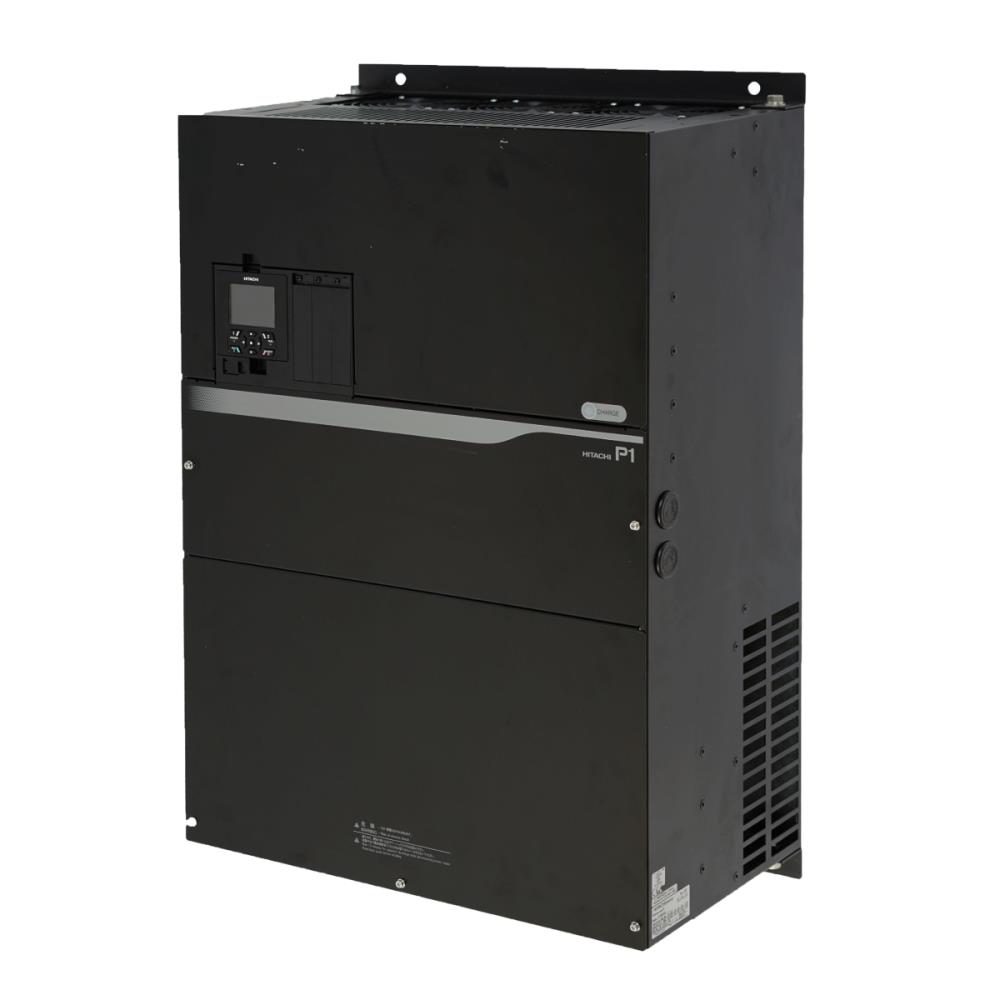

Hitachi frequentieregelaar

• U in = 3 fasen 380 - 500 VAC (+10% -15%)
• VLD: 1,5kW/4,1A (110% 60s / 120% 3s)
• LD: 1,5kW/3,1A (120% 60s / 150% 3s)
• ND: 0,75kW/2,5A (150% 60s / 200% 3s)
• IP20
• Afm. 150 x 255 x 140 mm bxhxd
• m = 4 kg

Hitachi frequentieregelaar

• U in = 3 fasen 380 - 500 VAC (+10% -15%)
• VLD: 2,2kW/5,4A (110% 60s / 120% 3s)
• LD: 2,2kW/4,8A (120% 60s / 150% 3s)
• ND: 1,5kW/4,0A (150% 60s / 200% 3s)
• IP20
• Afm. 150 x 255 x 140 mm bxhxd
• m = 4 kg

Hitachi frequentieregelaar

• U in = 3 fasen 380 - 500 VAC (+10% -15%)
• VLD: 3,7kW/8,3A (110% 60s / 120% 3s)
• LD: 3,7kW/6,7A (120% 60s / 150% 3s)
• ND: 2,2kW/5,5A (150% 60s / 200% 3s)
• IP20
• Afm. 150 x 255 x 140 mm bxhxd
• m = 4 kg

Hitachi frequentieregelaar

• U in = 3 fasen 380 - 500 VAC (+10% -15%)
• VLD: 5,5kW/12,6A (110% 60s / 120% 3s)
• LD: 5,5kW/11,1A (120% 60s / 150% 3s)
• ND: 3,7kW/9,2A (150% 60s / 200% 3s)
• IP20
• Afm. 150 x 255 x 140 mm bxhxd
• m = 4 kg

Hitachi frequentieregelaar

• U in = 3 fasen 380 - 500 VAC (+10% -15%)
• VLD: 7,5kW/17,5A (110% 60s / 120% 3s)
• LD: 7,5kW/16,0A (120% 60s / 150% 3s)
• ND: 5,5kW/14,8A (150% 60s / 200% 3s)
• IP20
• Afm. 210 x 260 x 170 mm bxhxd
• m = 7 kg

Hitachi frequentieregelaar

• U in = 3 fasen 380 - 500 VAC (+10% -15%)
• VLD: 11kW/25,0A (110% 60s / 120% 3s)
• LD: 11kW/22,0A (120% 60s / 150% 3s)
• ND: 7,5kW/19,0A (150% 60s / 200% 3s)
• IP20
• Afm. 210 x 260 x 170 mm bxhxd
• m = 7 kg

Hitachi frequentieregelaar

• U in = 3 fasen 380 - 500 VAC (+10% -15%)
• VLD: 15kW/31,0A (110% 60s / 120% 3s)
• LD: 15kW/29,0A (120% 60s / 150% 3s)
• ND: 11kW/25,0A (150% 60s / 200% 3s)
• IP20
• Afm. 210 x 260 x 170 mm bxhxd
• m = 7 kg

Hitachi frequentieregelaar

• U in = 3 fasen 380 - 500 VAC (+10% -15%)
• VLD: 18,5kW/40,0A (110% 60s / 120% 3s)
• LD: 18,5kW/37,0A (120% 60s / 150% 3s)
• ND: 15kW/32,0A (150% 60s / 200% 3s)
• IP20
• Afm. 245 x 390 x 190 mm bxhxd
• m = 16 kg

Hitachi frequentieregelaar

• U in = 3 fasen 380 - 500 VAC (+10% -15%)
• VLD: 22kW/47,0A (110% 60s / 120% 3s)
• LD: 22kW/43,0A (120% 60s / 150% 3s)
• ND: 18,5kW/39,0A (150% 60s / 200% 3s)
• IP20
• Afm. 245 x 390 x 190 mm bxhxd
• m = 16 kg

Hitachi frequentieregelaar

• U in = 3 fasen 380 - 500 VAC (+10% -15%)
• VLD: 30kW/62,0A (110% 60s / 120% 3s)
• LD: 30kW/57,0A (120% 60s / 150% 3s)
• ND: 22kW/48,0A (150% 60s / 200% 3s)
• IP20
• Afm. 245 x 390 x 190 mm bxhxd
• m = 16 kg

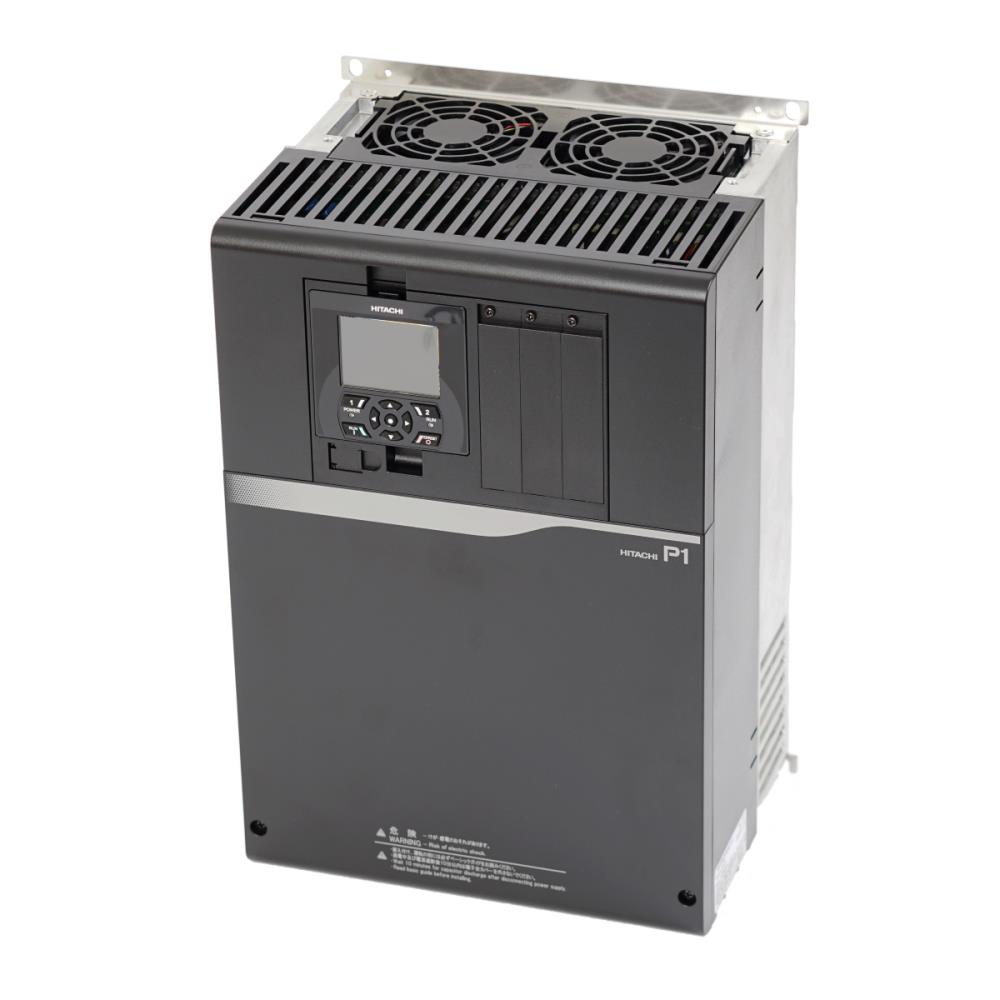

Hitachi frequentieregelaar

• U in = 3 fasen 380 - 500 VAC (+10% -15%)
• VLD: 37kW/77,0A (110% 60s / 120% 3s)
• LD: 37kW/70,0A (120% 60s / 150% 3s)
• ND: 30kW/61,0A (150% 60s / 200% 3s)
• IP20
• Afm. 300 x 540 x 195 mm bxhxd
• m = 22 kg

Hitachi frequentieregelaar

• U in = 3 fasen 380 - 500 VAC (+10% -15%)
• VLD: 45kW/93,0A (110% 60s / 120% 3s)
• LD: 45kW/85,0A (120% 60s / 150% 3s)
• ND: 37kW/75,0A (150% 60s / 200% 3s)
• IP20
• Afm. 390 x 550 x 250 mm bxhxd
• m = 30 kg

Hitachi frequentieregelaar

• U in = 3 fasen 380 - 500 VAC (+10% -15%)
• VLD: 55kW/116,0A (110% 60s / 120% 3s)
• LD: 55kW/105,0A (120% 60s / 150% 3s)
• ND: 45kW/91,0A (150% 60s / 200% 3s)
• IP20
• Afm. 390 x 550 x 250 mm bxhxd
• m = 30 kg

Hitachi frequentieregelaar

• U in = 3 fasen 380 - 500 VAC (+10% -15%)
• VLD: 75kW/147,0A (110% 60s / 120% 3s)
• LD: 75kW/135,0A (120% 60s / 150% 3s)
• ND: 55kW/112,0A (150% 60s / 200% 3s)
• IP20
• Afm. 390 x 550 x 250 mm bxhxd
• m = 30 kg

Hitachi frequentieregelaar

• U in = 3 fasen 380 - 500 VAC (+10% -15%)
• VLD: 90kW/176,0A (110% 60s / 120% 3s)
• LD: 90kW/160,0A (120% 60s / 150% 3s)
• ND: 75kW/150,0A (150% 60s / 200% 3s)
• IP20
• Afm. 390 x 770 x 270 mm bxhxd
• m = 55 kg

Hitachi frequentieregelaar

• U in = 3 fasen 380 - 500 VAC (+10% -15%)
• VLD: 110kW/213,0A (110% 60s / 120% 3s)
• LD: 110kW/195,0A (120% 60s / 150% 3s)
• ND: 90kW/180,0A (150% 60s / 200% 3s)
• IP20
• Afm. 390 x 700 x 270 mm bxhxd
• m = 55 kg

Hitachi frequentieregelaar

• U in = 3 fasen 380 - 500 VAC (+10% -15%)
• VLD: 132kW/252,0A (110% 60s / 120% 3s)
• LD: 132kW/230,0A (120% 60s / 150% 3s)
• ND: 110kW/217,0A (150% 60s / 200% 3s)
• IP20
• Afm. 48 x 720 x 270 mm bxhxd
• m = 70 kg

Hitachi frequentieregelaar

• U in = 3 fasen 380 - 500 VAC (+10% -15%)
• VLD: 160kW/316,0A (110% 60s / 120% 3s)
• LD: 160kW/290,0A (120% 60s / 150% 3s)
• ND: 132kW/260,0A (150% 60s / 200% 3s)
• IP20
• Afm. 480 x 740 x 270 mm bxhxd
• m = 70 kg

Hitachi frequentieregelaar

• U in = 3 fasen 380 - 500 VAC (+10% -15%)
• VLD: 185kW/372,0A (110% 60s / 120% 3s)
• LD: 185kW/341,0A (120% 60s / 150% 3s)
• ND: 160kW/310,0A (150% 60s / 200% 3s)
• IP20
• Afm. 480 x 995 x 370 mm bxhxd
• m = 95 kg
• Tussenkring (DCL) spoel noodzakelijk

Hitachi frequentieregelaar

• U in = 3 fasen 380 - 500 VAC (+10% -15%)
• VLD: 185kW/372,0A (110% 60s / 120% 3s)
• LD: 185kW/341,0A (120% 60s / 150% 3s)
• ND: 160kW/310,0A (150% 60s / 200% 3s)
• IP20
• Afm. 480 x 995 x 370 mm bxhxd
• m = 95 kg
• Tussenkring (DCL) spoel noodzakelijk

Hitachi frequentieregelaar

• U in = 3 fasen 380 - 500 VAC (+10% -15%)
• VLD: 220kW/486,0A (110% 60s / 120% 3s)
• LD: 220kW/446,0A (120% 60s / 150% 3s)
• ND: 200kW/405,0A (150% 60s / 200% 3s)
• IP20
• Afm. 680 x 995 x 370 mm bxhxd
• m = 125 kg
• Tussenkring (DCL) spoel noodzakelijk

Hitachi frequentieregelaar

• U in = 3 fasen 380 - 500 VAC (+10% -15%)
• VLD: 250kW/520,0A (110% 60s / 120% 3s)
• LD: 250kW/481,0A (120% 60s / 150% 3s)
• ND: 220kW/450,0A (150% 60s / 200% 3s)
• IP20
• Afm. 680 x 995 x 370 mm bxhxd
• m = 125 kg
• Tussenkring (DCL) spoel noodzakelijk

Hitachi frequentieregelaar

• U in = 3 fasen 380 - 500 VAC (+10% -15%)
• LD: 280kW/550,0A (120% 60s / 150% 3s)
• ND: 250kW/500,0A (150% 60s / 200% 3s)
• IP20
• Afm. 680 x 995 x 370 mm bxhxd
• m = 125 kg
• Tussenkring (DCL) spoel noodzakelijk

Hitachi frequentieregelaar

• U in = 3 fasen 380 - 500 VAC (+10% -15%)
• LD: 355kW/660,0A (120% 60s / 150% 3s)
• ND: 315kW/600,0A (150% 60s / 200% 3s)
• IP20
• Afm. 580 x 1200 x 450 mm bxhxd
• m = 170 kg
• Tussenkring (DCL) spoel noodzakelijk

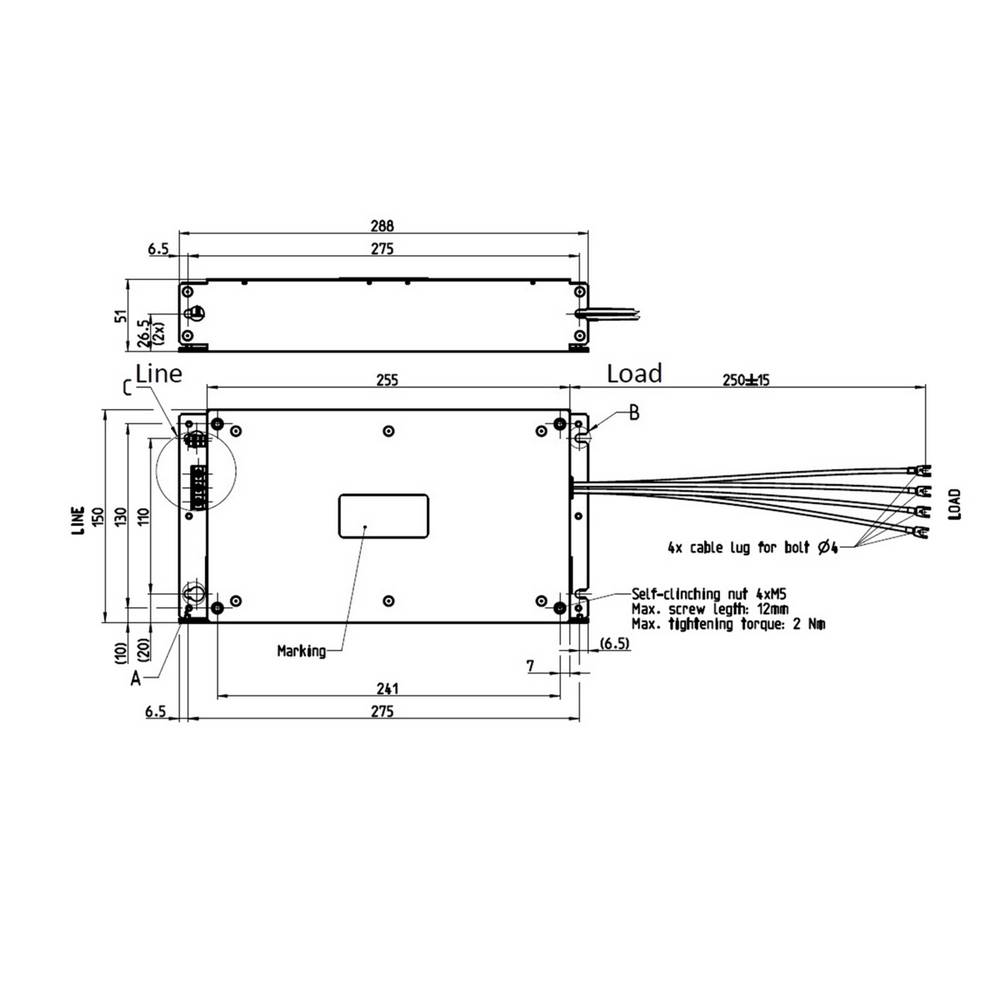

Hitachi EMC netfilter

• Achterbouwfilter
  t.b.v.:
• P1-00041-HFEF (VLD, LD, ND)
• P1-00054-HFEF (VLD, LD, ND)
• P1-00083-HFEF (ND)
• afmeting: 150 x 275 x 51 mm
• massa: 1,7kg
• beschermingsgraad: IP20
• Klasse C2 met 8 kHz en max 50 meter motorkabellengte

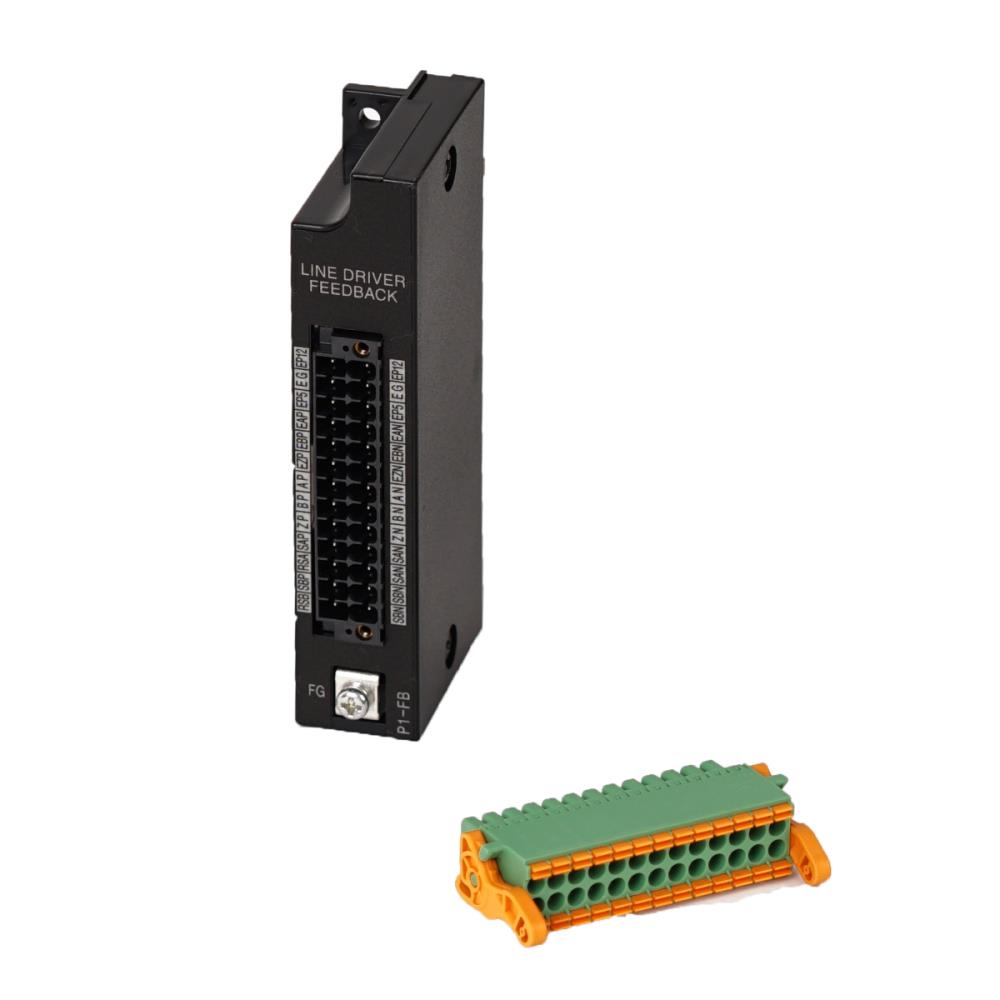

Hitachi P1 Encoder feedback kaart

• Encoder feedback kaart
• t.b.v. Hitachi P1 serie frequentieregelaars

Hitachi P1 Analoge I/O kaart

• Analoge I/O kaart
• 2 x analoge ingangen (kanaal 4,5) 0-10 V of 0-20 mA
• 1 x analoge ingang (kanaal 6) -10 tot +10 V
• 2 x analoge ingangen (kanaal 3,4) 0-10 V of 0-20 mA
• 1 x analoge ingang (kanaal 5) -10 tot +10 V

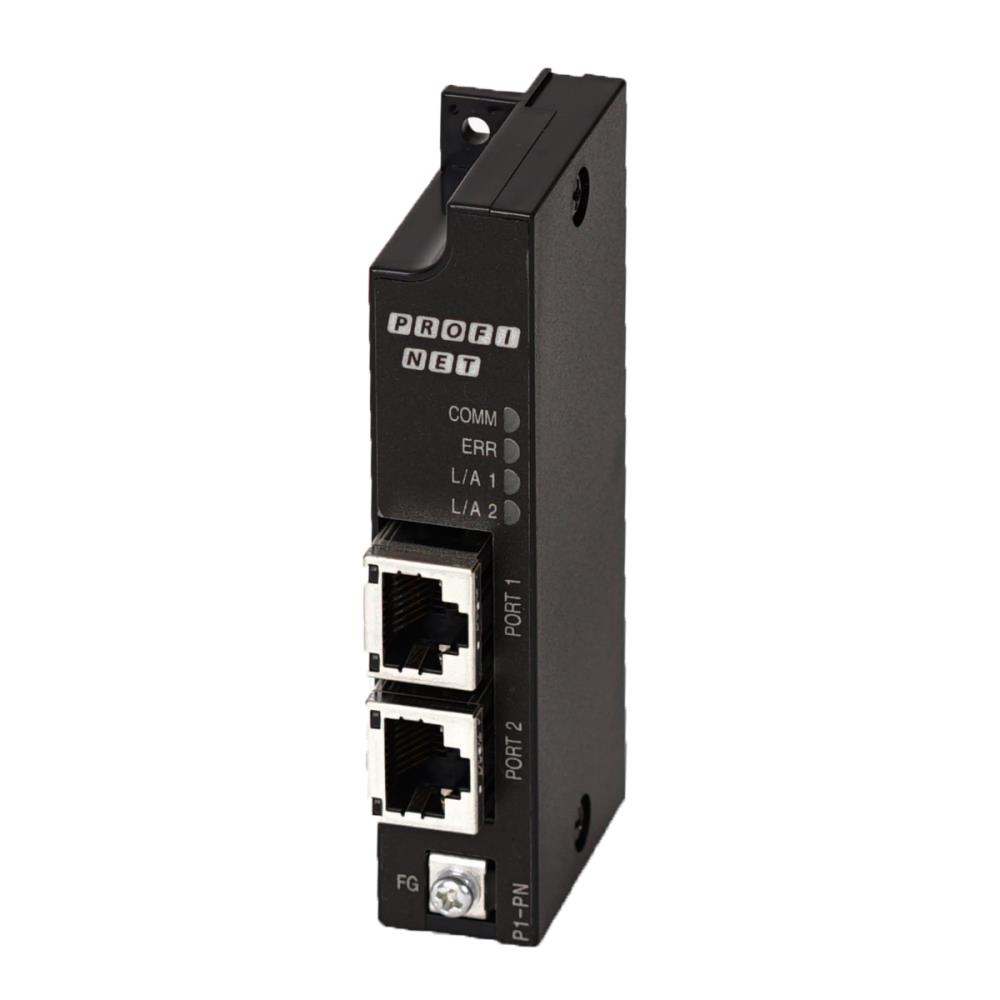

Hitachi P1 PROFINET kaart

• PROFINET interface
• t.b.v. Hitachi P1 serie frequentieregelaars

Hitachi P1 Modbus TCP/IP kaart

• Modbus TCP/IP interface
• t.b.v. Hitachi P1 serie frequentieregelaars

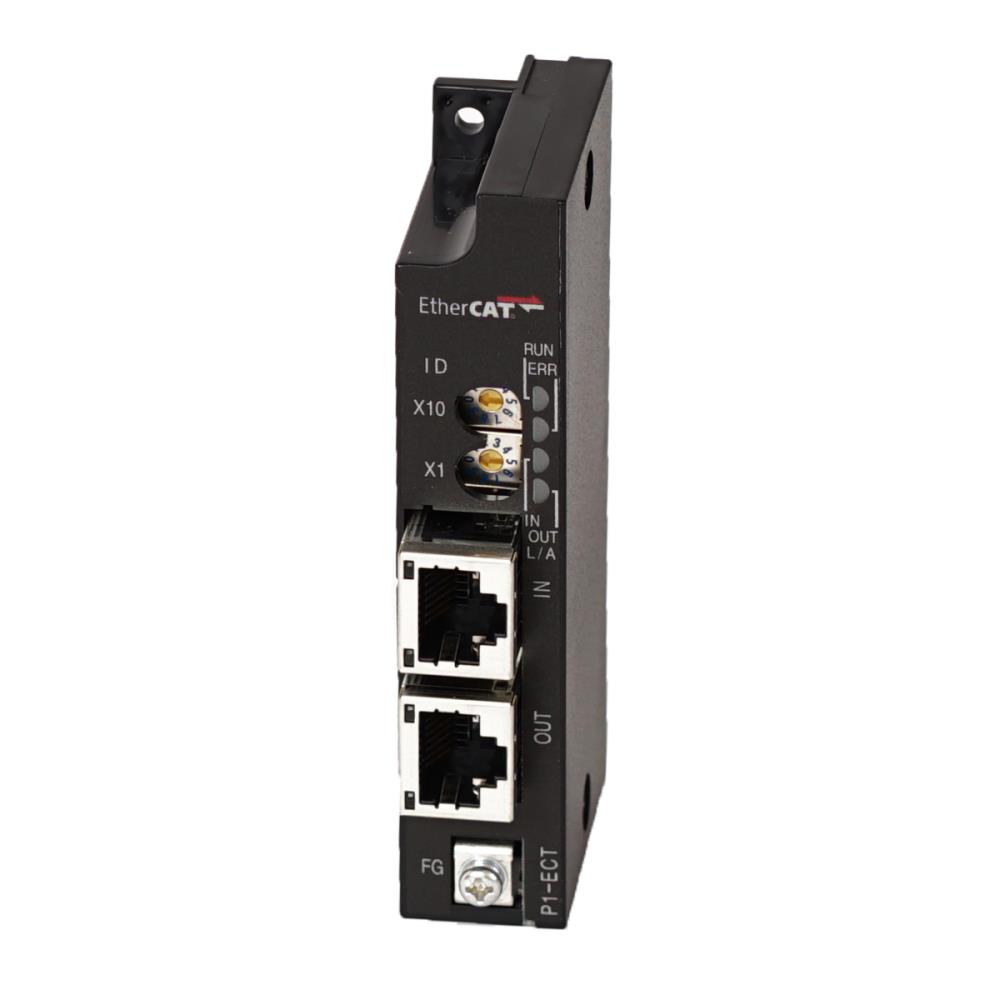

Hitachi P1 EtherCAT kaart

• EtherCAT interface
• t.b.v. Hitachi P1 serie frequentieregelaars

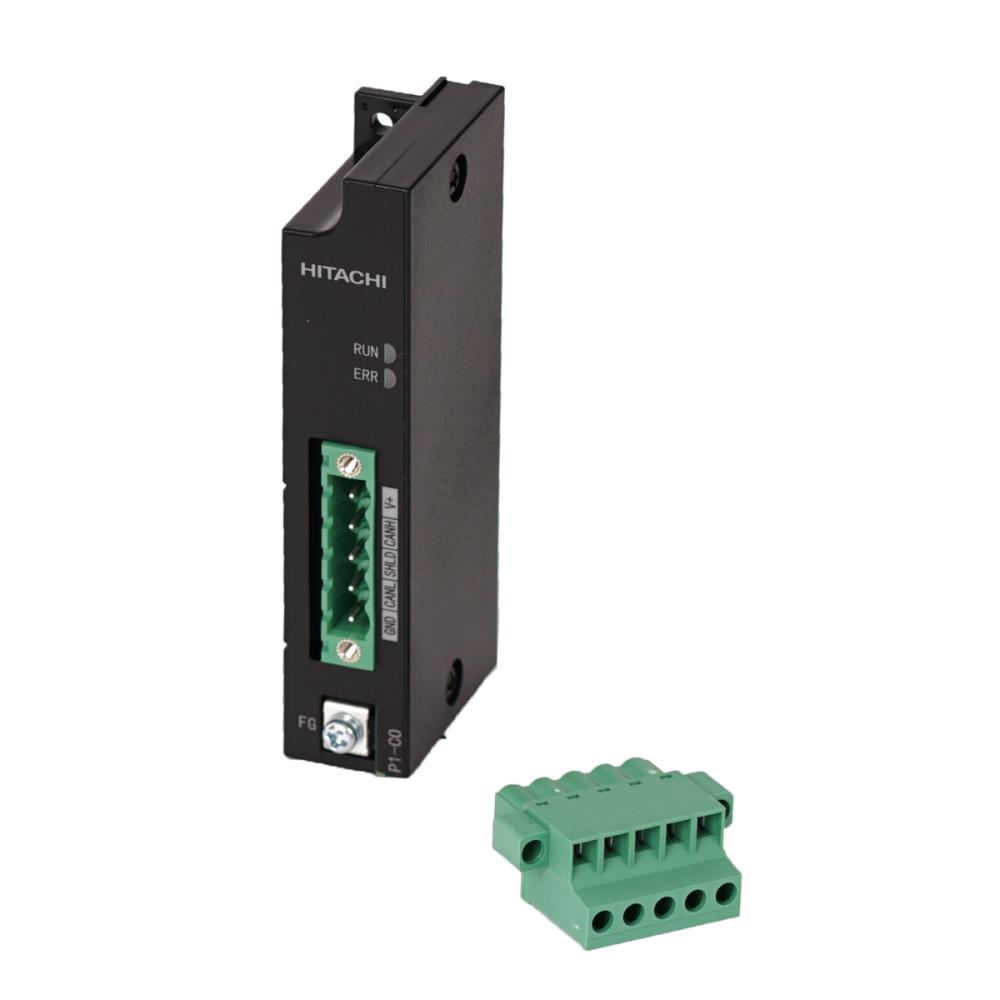

Hitachi P1 CAN Open kaart

• CAN Open interface
• t.b.v. Hitachi P1 serie frequentieregelaars

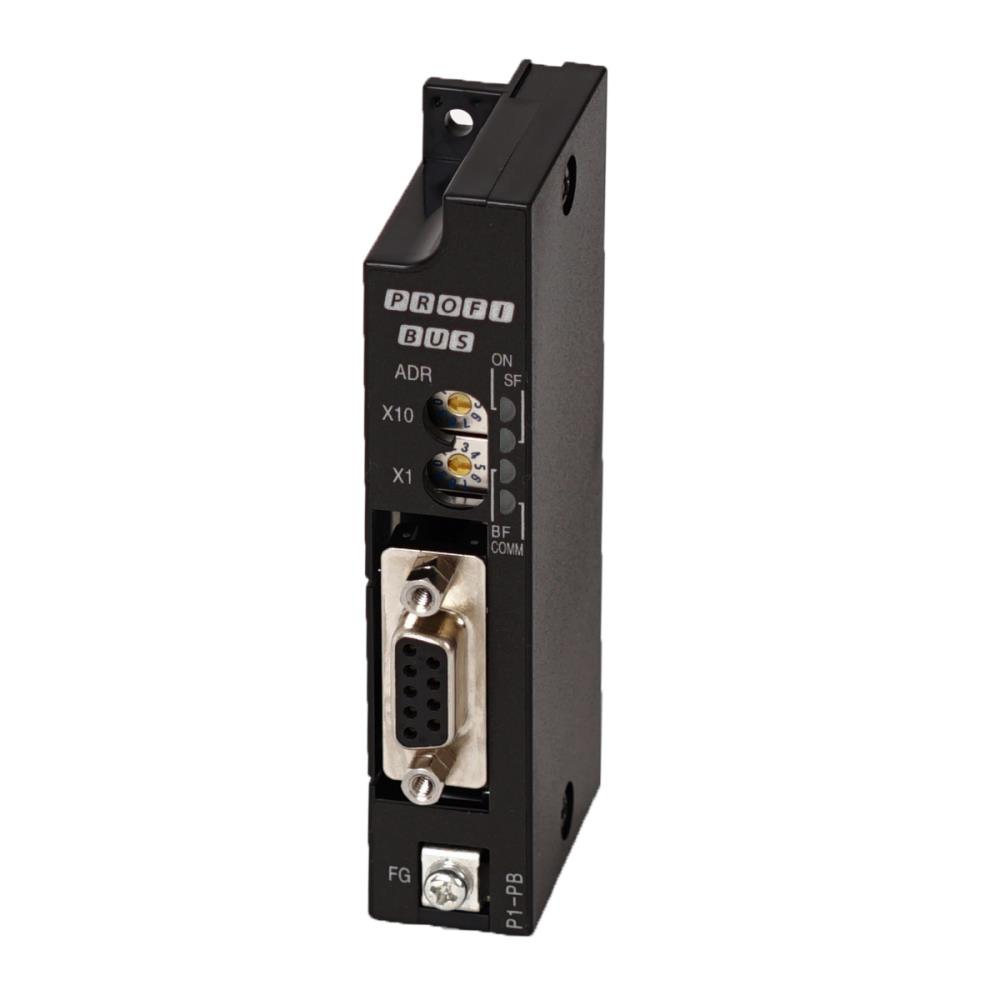

Hitachi P1 Profibus-DP kaart

• Profibus-DP interface
• t.b.v. Hitachi P1 serie frequentieregelaars

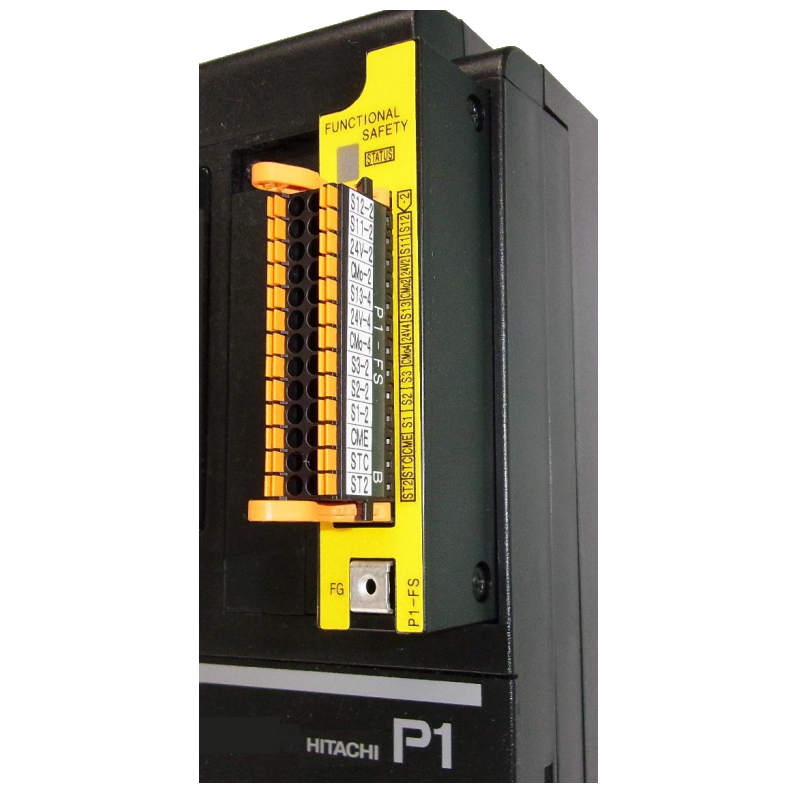

Hitachi P1 Safety functiemodule

• Geschikt voor: SJ-P1 (Ver. 2.01 of later)
• STO (Safe Torque off)
• SS1 (Safe stop 1)
• SBC (Safe brake control)
• SLS (Safety Limited speed)
• SDI (Safe direction)
• SSM (Safe speed monitor)
• Volgens EN ISO/ISO 13849-1: PL e,CAT.4,
• IEC 61508, EN/IEC 61800-5-2, EN/IEC 62061: SIL 3, STO.
• EN/IEC 60204-1: Stop category 0,1

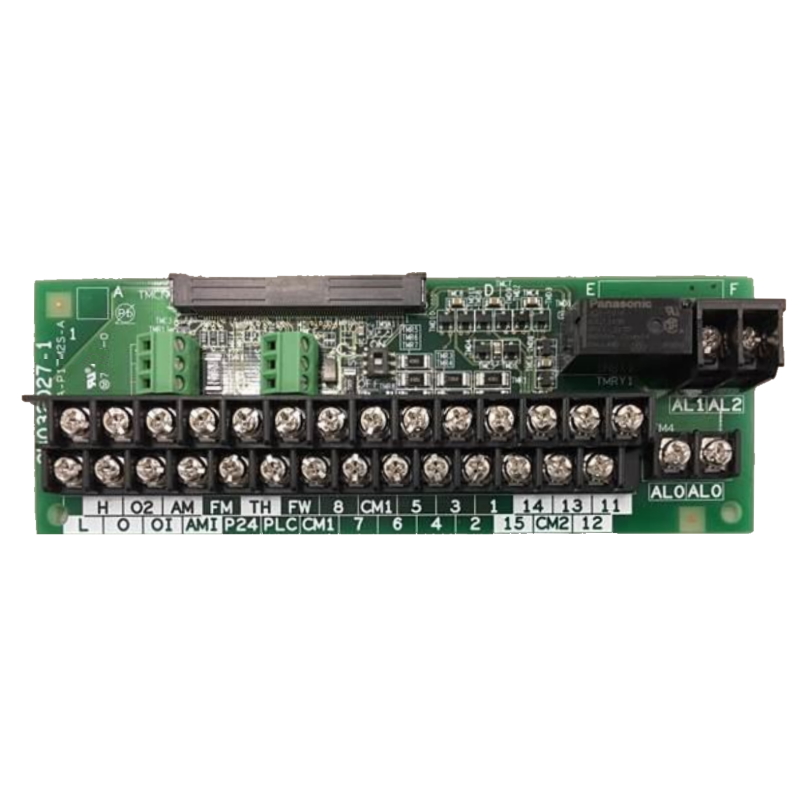

P1-TM2 Schroefterminal uitwisselbaar met de SJ700D

Let op bij overzetten van SJ700(B) en L300P naar P1 regelaar:

• PTC ingang schakelt naar nul ipv P24
• P1-TM2 heeft maar 1 uitgangsrelais ipv 2 op de SJ700(B) en L300P

Hitachi EMC netfilter

• Achterbouwfilter t.b.v.:
• P1-00083-HFEF, P1-00126-HFEF
• P1-00083-HFEF (VLD, LD)
• P1-00126-HFEF (VLD, LD, ND)
• afmeting: 150 x 275 x 51 mm
• massa: 1,9kg
• beschermingsgraad: IP20
• Klasse C2 met 8 kHz en max 50 meter motorkabellengte

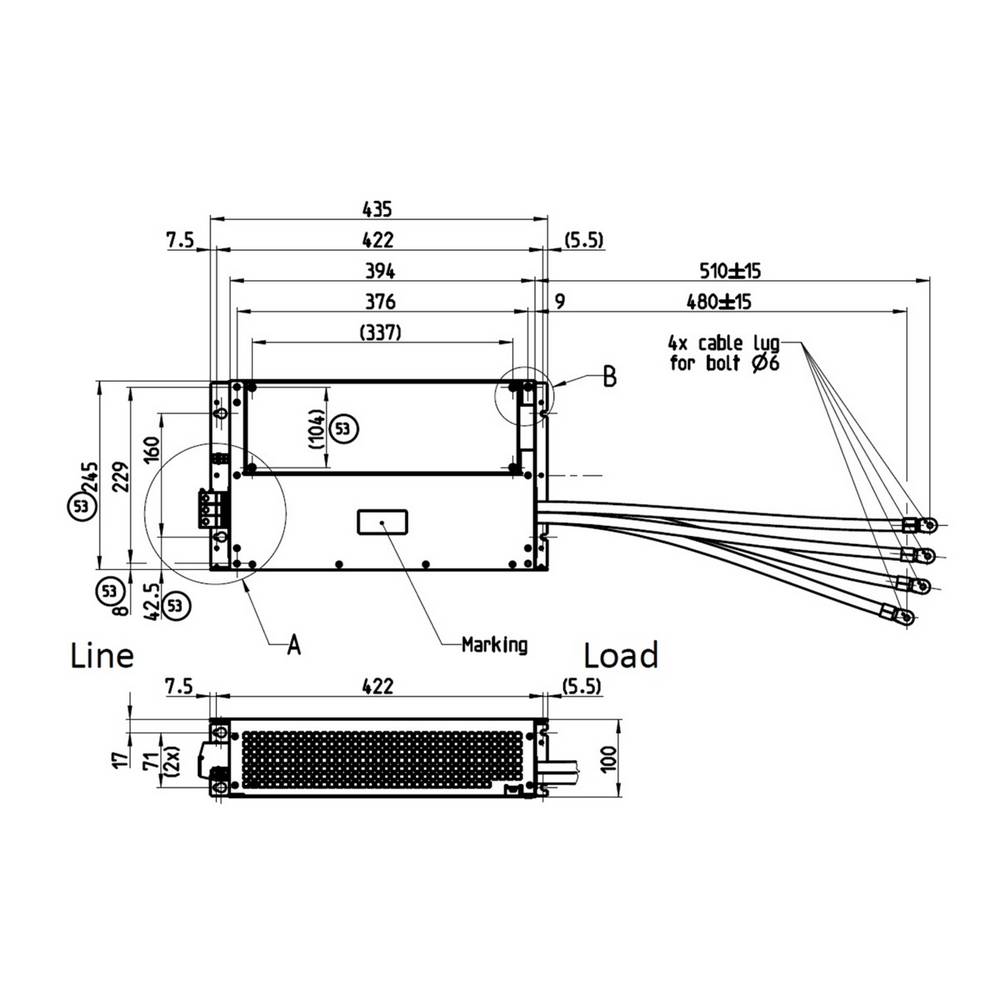

Hitachi EMC netfilter

• Achterbouwfilter
• t.b.v.: P1-00175-HFEF
• P1-00175-HFEF (VLD, LD, ND)
• P1-00250-HFEF (ND)
• afmeting: 210 x 300 x 73 mm
• massa: 3,2kg
• beschermingsgraad: IP20
• Klasse C2 met 8 kHz en max 50 meter motorkabellengte
